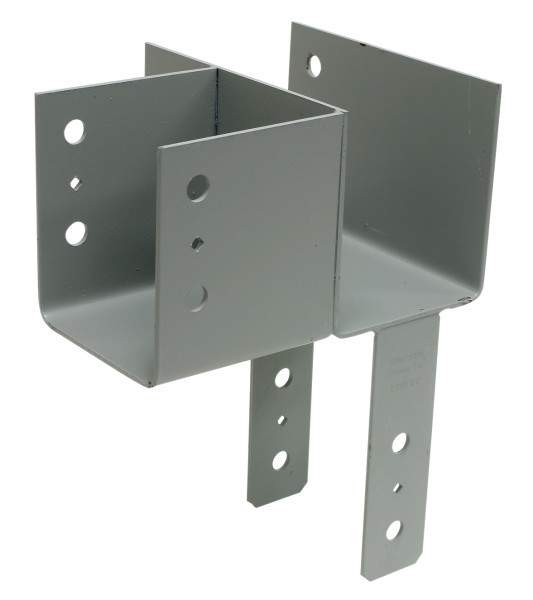

ECCLR666 End Column Cap (L-Shaped)

Simpson Strong-Tie

(No reviews yet) Write a Review
Retail Price: $385.05
Sale Price: $285.23
SKU:
ECCLR666
UPC:
044315570407
Availability:
Usually ships the same business day
Finish:
Gray Primer
Adding to cart… The item has been added

Product Overview

ECCLR666 End Column Cap (L-Shaped)

The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

  • Certified welds for confidence in strength and loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening

Material

  • 7 gauge or 3 gauge depending on size

Finish

  • Simpson Strong-Tie gray paint. Also available in HDG; see Corrosion Information.

Installation

  • Use all specified fasteners; see General Notes
  • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than bolt diameter (per 2015 and 2018 NDS 12.1.3.2)

Options

  • Many combinations of beam and post sizes can be manufactured. Refer to worksheet Options for Multiple-Beam, Bolted Column Caps (T-C-CCLTC-WS).
  • The download shall be determined from the allowable loads for the unmodified product (see ECC column caps). The side beam can take a maximum of 40% of the download and shall not exceed 10,665 lb. The sum of the loads for the side beam(s) and main beam cannot exceed the table load.
  • Uplift loads do not apply for ECCL caps.
  • The column width in the direction of the main beam width must be the same as the main beam width (W1).
  • Specify the stirrup height from the top of the cap. The minimum side stirrup heights (H2 or H3) is 6 1/2" (3 1/2" for models ending in “44”).
  • The L dimension may vary depending on the width of the side stirrup (W3 or W4).
  • Column caps may be ordered without the column straps for field welding to a steel column. Specify “No Straps” when ordering. Weld by designer. Full loads apply for the beam and the post cap.
