Product Overview

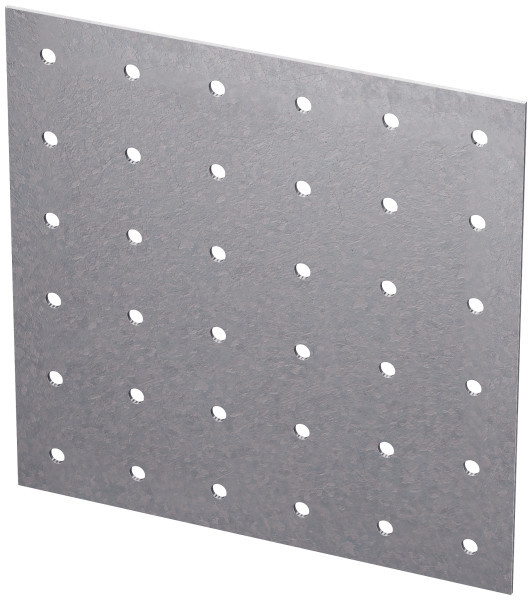

GP66/54-R50 Gusset Plate (Pack of 50pcs)
6"x6" 16ga Gusset Plate, 50 pack
The GP gusset plate is designed to secure cold-formed steel (CFS) strapped shearwalls, truss connectors, miscellaneous wall connectors and other framing applications. The GP66 (6" x 6") and GP69 (6" x 9") have holes conveniently located 1" center-to-center to make screw installation easy and quick. The GP612 (6" x 12") and GP1212 (12" x 12") have holes on the outside edges and dimples in the center. The dimples act as screw locators when attaching from gusset plate to CFS member. When attaching from CFS member (i.e., strap bracing) to gusset plate, the dimples avoid the interference that prepunched holes could cause.
Key Features
- Multiple stocked sizes and thicknesses to meet job site needs
- Prepunched holes for easy and quick installation
- Dimples in the GP612 and GP1212 models provide more flexibility for fastening cross-bracing to the gusset plate as they act as screw placement locators that can accommodate various strap and framing dimensions
Material
- 43 mil (18 ga.) — 33 ksi; 54 mil (16 ga.) — 50 ksi; 68 mil (14 ga.) — 50 ksi; 97 mil (12 ga.)— 50 ksi
Finish
- Galvanized (G90)
