Product Overview

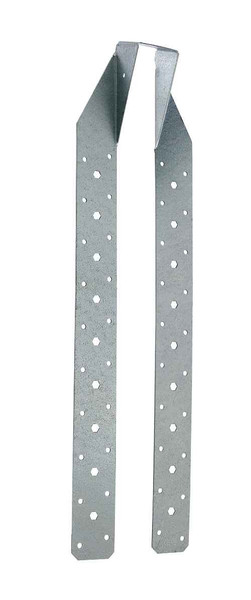

H16-2 Hurricane Tie
The H16 is a high-capacity hurricane tie that connects trusses to the top of wall plates in wood framing walls. The presloped seat simplifies installation and improves performance. The long straps of the H16 increase versatility, making it suitable for truss heel height up to 13 1/2".
Key Features
- Provides a connection between the truss or rafter and the wall of the structure that helps resist wind forces
- The presloped seat of 5:12 provides a tight fit and reduced deflection
Material
- 18 ga.
Finish
- Galvanized (G90)
Installation
- Use all specified fasteners; see General Notes.
- Hurricane ties do not replace solid blocking.
- Minimum heel height for H16 is 4".
- H16 presloped at 5/12. Truss/rafter pitch of 3/12 to 7/12 is acceptable.
