Product Overview

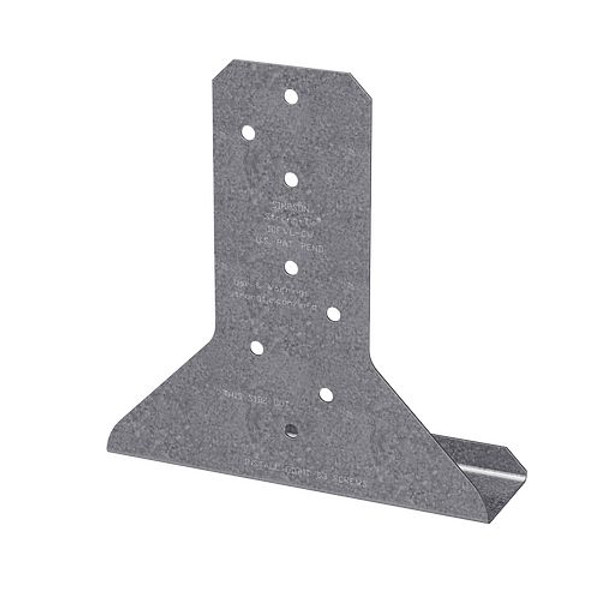

ICFVL-W Ledger Connector System for Wood Ledger (Carton of 15pcs)
The ICFVL-W/ICFVL-CW is designed to be used with the ICFVL ledger connector system for mounting wood ledgers to insulated concrete form (ICF) walls. The ICFVL-W is to be used when using single 2x ledger sizes. The ICFVL-CW is to be used when using single LVL ledger sizes.
Key Features
- A carton of ICF-D3.25 screws (128 QTY) is included with ICFVL-W and ICFVL-CW carton sales and is also sold separately
- ICFVL-W has a flange width of 1.56" to accommodate a single 2x ledger size
- ICFVL-CW has a flange width of 1.81" to accommodate a single LVL ledger size
Material
- 16 ga. (54 mil)
Finish
- Galvanized (G90)
Installation
Wood Ledger Attachment — ICFVL-W or -CW
- Slip appropriate ledger connector underneath the ledger
- Install the eight ICF-D3.25 screws partially into the ledger; ICF-D3.25 installs best in dry conditions, using a low-speed drill with a 3/8" hex-head driver
- For denser wood species (specific gravity ≥ .50), predrilling may be necessary; predrill ledger only with a 5/32" drill bit
- Position bottom of the ledger level to the chalk line and drive the screws through the wood and into the ICFVL
Warning
- Industry studies show that hardened fasteners can experience performance problems in wet environments. Accordingly, use this product in dry environments only.
