Product Overview

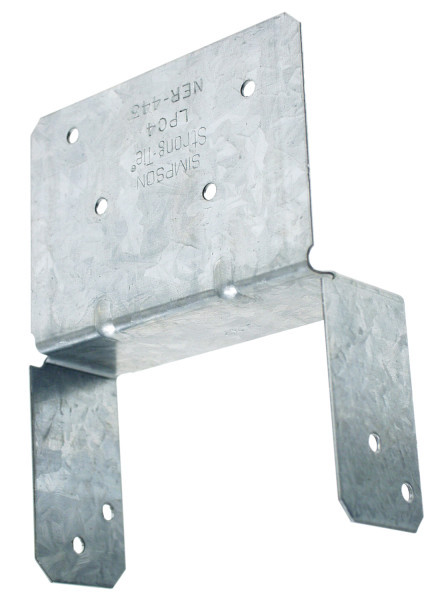

LPC4Z Light Post Cap
The LPCZ is designed for a variety of connections between a 4x or 6x beam and a post. This versatile, light post cap has an adjustable design that allows for connection versatility in both new and retrofit applications where structural support is needed. The LPCZ has a ZMAX® coating, a thicker galvanized finish that helps to extend the service life of the connector.
Key Features
- Always install in pairs; universal design eliminates need for rights and lefts
- Stronger than angled nailing or screw fastening; eliminates nailing into end grain
- Can be installed after beams have been put in place
Material
- LPC4Z — 18 gauge; LPC6Z — 16 gauge
Finish
- ZMAX coating
Installation
- Use all specified fasteners; see General Notes
- Install all models in pairs
- 2 1/2" beams may be used if 0.148" x 1 1/2" nails are substituted for 0.148" x 3" nails
