Product Overview

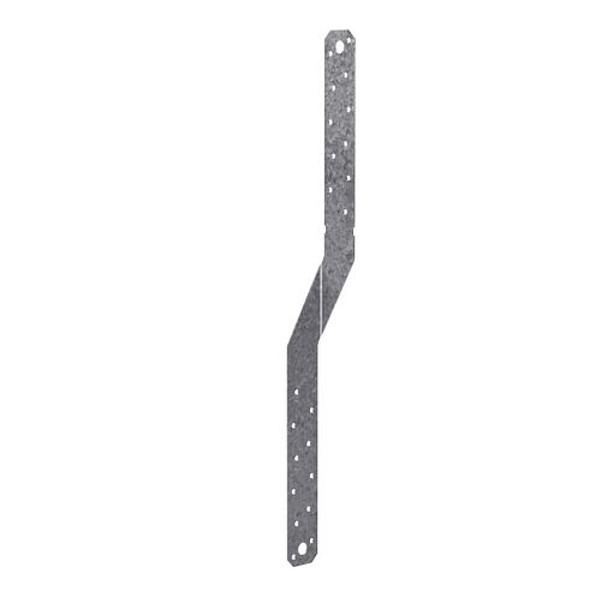

LTS16 Light Twist Strap
The LTS provides a tension connection between two members, resisting light to medium uplift loads at the rafter or heel of a truss. This economical light twist strap has a small bend section to reduce interference at the transition points between the two members.
Key Features
- Available with the bend reversed
- Versatile with many lengths offered to fit the specific application
- Straps do not need to be wrapped over the truss to achieve the allowable load
Material
- 18 gauge
Finish
- Galvanized. Some products available in stainless steel; see Corrosion Information.
Installation
- Use all specified fasteners, with half into each member being connected, to achieve the listed loads; see General Notes.
- Available with the bend reversed. Specify "-REV" after the model number, such as LTS16-REV.
