Product Overview

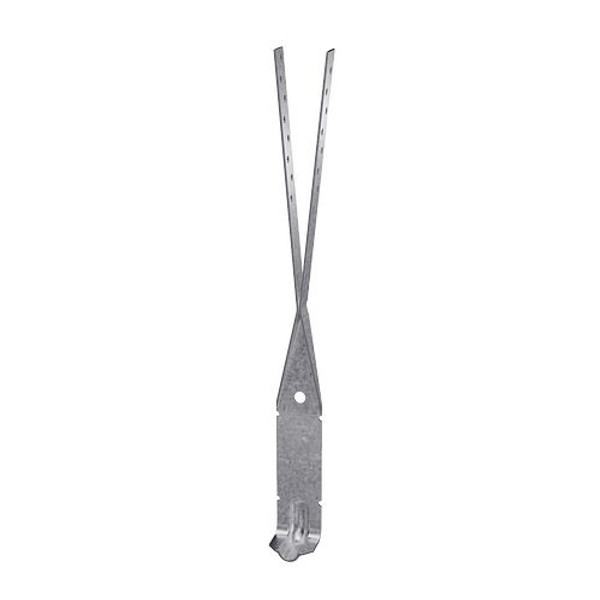

MAB15 Mudsill Anchor
The MAB is a mudsill anchor with the design flexibility to anchor the mudsill to concrete block, poured walls or slab foundations. Because of its unique design, the MAB can eliminate certain problems associated with misplaced anchor bolts.
Key Features
- Suitable for stem wall, concrete block or slab foundations
- One-piece design, so there are no nuts and washers to lose
- An alternative to anchor bolts
Material
- 18 gauge
Finish
- Galvanized or ZMAX® coating; see Corrosion Information
Installation
- Use all specified fasteners; see General Notes
- CMU shall have a minimum f'm = 1,500 psi and concrete shall have a minimum f'c = 2,500 psi
- Not for use where a horizontal cold joint exists between the slab and foundation wall or footing beneath, unless provisions are made to transfer the load
- Not for use in slabs poured over foundation walls formed of concrete block or with brick and 4" masonry block stem walls
