Product Overview

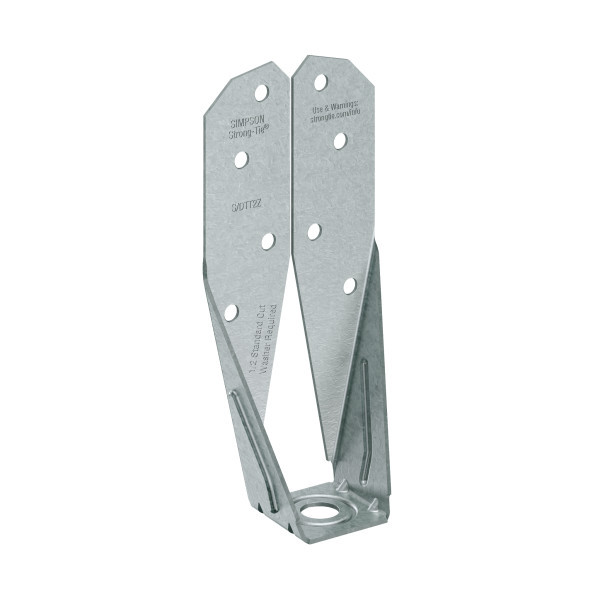

S/DTT2Z Light Tension Tie for Steel
The S/DTT is suitable for lighter-duty hold-down (holdown) applications on single or back-to-back studs, and installs easily with #14 self-drilling screws. These light tension ties are ideal for retrofit or new construction projects. They provide high-strength, post-pour, concrete-to-steel connections.
Key Features
- Can be installed with cast-in-place or post-installed anchor bolts
- Short profile height
Material
- 68 mil (14 ga.)
Finish
- ZMAX® coating
Installation
- Use all specified fasteners.
- Use the specified number of type of screws to attach the strap portion to the steel stud. Bolt the base to the wall or foundation with a suitable anchor; see table for the required bolt diameter.
- S/DTT2Z requires a standard cut washer (included) be installed between the nut and the seat.
