Product Overview

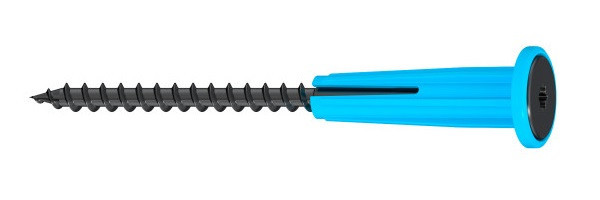

SDPW14312NB-R20 Strong-Drive Deflector Screw Fastener Only (Box of 20pcs)
DEFLECTOR SCREW 3.5" FASTENER ONLY 20CT
The Strong-Drive SDPW Deflector screw from Simpson Strong-Tie is a premium structural fastening solution for connecting non-load-bearing walls to trusses and joists. With tested lateral-load ratings that meet building code requirements, the SDPW screw is value engineered for strength, installation speed and safety. Offset driver bits and a driver extension maximize installation speed and safety while minimizing installed cost. The SDPW’s screw and polymer sleeve permit the naturally occurring differential deflection between the wall and the supporting member without squeaking.
Key Features
- Deep 6-lobe recess for secure driving
- Polymer sleeve allows for deflection without squeaks
- Interior-grade E-coat for dry service applications
- Offset driver bit (6-lobe) drives SDPW Deflector screw to predetermined screw depth
- Available in 3 1/2", 5" and 6" lengths
Applications
- Non-load-bearing partition walls to trusses and joists
Product Includes
- Most SDPW screw packaging includes an offset driver bit and a 3/8" predrill bit; 20-count retail packs do not include any bits
Installation
- Installation Guide
- The installation edge distances pertain to the top plate and supporting member (e.g., truss, rafter) separately. For the top plate the installation edge distance is 1/4 the width of the top plate. Example: if the top plate width is 3.50", the edge distance is 0.875". For the supporting member, the edge distance (or embedded screw location) is within the middle third of the member’s edge width measurement, within +/- 5° of plumb. Example, if the supporting members’ edge width is 1.5", the screw should be embedded within the middle 0.5" of the member.
