Product Overview

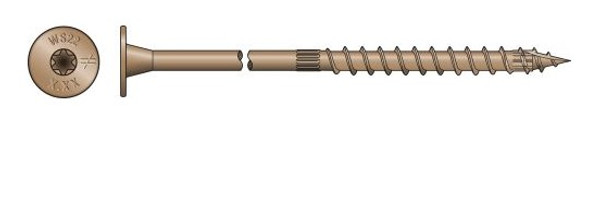

SDWS22800DB Structural Wood Screw
Designed to provide an easy-to-install, high-strength alternative to through-bolting and traditional lag screws. The Strong-Drive SDWS Timber screw is ideal for the contractor and do-it-yourselfer alike. It is code listed under IAPMO UES ER-192 and meets 2012 and 2015 IRC and IBC code requirements for several common wood framing and engineered-wood applications.
Key Features:
New — Patented SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
Bold thread design provides superior holding power
Under-head nibs offer greater control when seating the head
Large low-profile washer head provides maximum bearing area (0.75" head dia.)
Size identification on all SDWS screw heads
6-lobe T-40 drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
Applications:
Structural wood-to-wood and engineered-wood connections including ledgers
Product Includes:
Retail and mini-bulk packs include one 6-lobe, T-40 driver bit; bulk packs include two driver bits
Designed to provide an easy-to-install, high-strength alternative to through-bolting and traditional lag screws. The Strong-Drive SDWS Timber screw is ideal for the contractor and do-it-yourselfer alike. It is code listed under IAPMO UES ER-192 and meets 2012 and 2015 IRC and IBC code requirements for several common wood framing and engineered-wood applications.
Key Features:
New — Patented SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
Bold thread design provides superior holding power
Under-head nibs offer greater control when seating the head
Large low-profile washer head provides maximum bearing area (0.75" head dia.)
Size identification on all SDWS screw heads
6-lobe T-40 drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
Applications:
Structural wood-to-wood and engineered-wood connections including ledgers
Product Includes:
Retail and mini-bulk packs include one 6-lobe, T-40 driver bit; bulk packs include two driver bits
