Product Overview

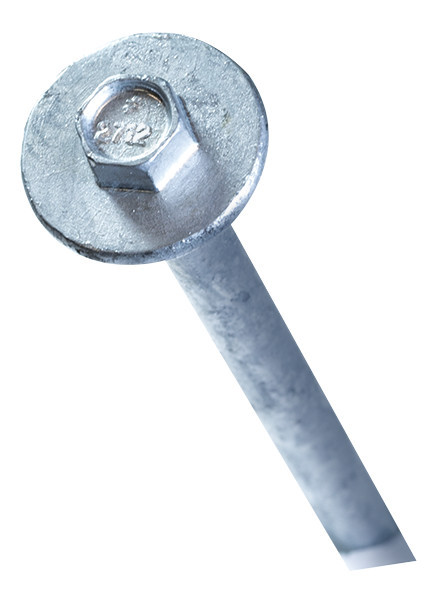

SDWH271200GR30 Timber Hex Screw
The SDWH Timber-Hex HDG screw a 0.276"-diameter hot-dip galvanized screw suitable for heavy-duty marine and coastal applications. The SDWH Timber-Hex HDG screw has a SawTooth point and oversized integral washer that makes for fast installations; no predrilling or separate washer needed. Speed up your next pile job by replacing 3/4" and 5/8" HDG bolt/washer/nut assemblies (two screws for one bolt in many conditions) with the new Strong-Drive SDWH Timber-Hex HDG screw. It is code listed under IAPMO-UES ER-192 and meets 2012 and 2015 IRC and IBC code requirements for several common wood framing, piling and engineered-wood applications.
Key Features:
Burly 0.276" shank diameter for heavy-duty structural applications
ASTM A153 Class-C hot-dip galvanized coating suitable for coastal and marine environments
SawTooth point design for fast starts and no predrilling
Oversized 0.93"-diameter integral washer eliminates the need for a separate washer
3/8" hex drive for secure driving (replacement driver bit — BITHEXR38-134)
Applications:
Structural wood-to-wood, engineered wood, including ledgers and pile connections
Installation:
Install Tip: For best results, use a minimum of 1/2" low-speed corded drill to install
