Product Overview

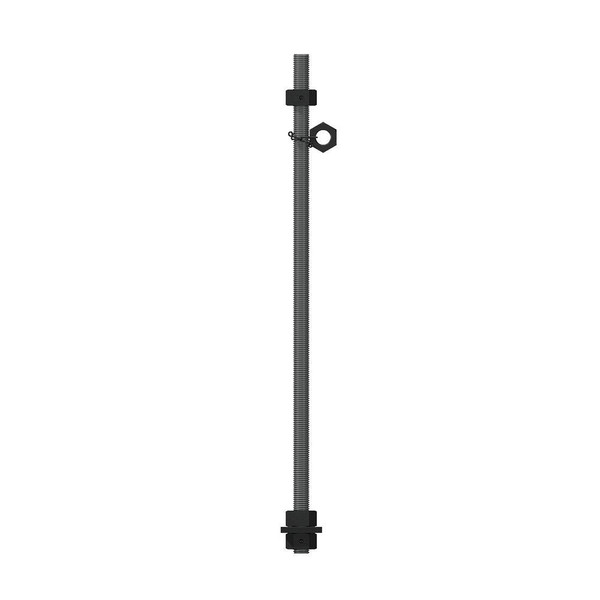

SSWAB1X54HS-U Steel Strong Wall Anchor Bolt
1 X 54 SSWAB, UN-PEENED COMPRESSION NUT
The SSWAB is a heavy-duty, preassembled anchor bolt used to attach Steel Strong-Wall shearwalls to concrete foundations. With a variety of length and diameter options, these anchor bolts offer flexibility for meeting specific project demands. A stamped head makes inspection and identification easy with a No-Equal symbol, bolt length, bolt diameter and optional “HS” for high strength, if specified.
Key Features
- Fixed-in-place compression nut to improve performance
- Head stamp for easy identification and inspection
- Supplied with extra nut for attachment to anchor template
Product Includes
- An additional nut for template installation is provided with each SSWAB
Material
- ASTM F1554 Grade 36; high-strength (HS) ASTM A449
Finish
- None or HDG
Installation
- Install SSWAB before the concrete is poured using the appropriate SSWT anchor template and supplied nut; locate per designer
- Install shear reinforcement per the registered design professional before concrete is poured
- Foundation design by designer
