Product Overview

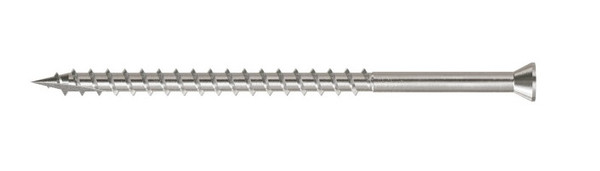

T07300FB5 Trim-Head Wood Screw, Square Drive (5 LB Pack)
#7 3IN 316SS TRIM #1 17PT 5#
Ideal for decking applications, this trim-head screw features a square drive for secure, slip-free engagement during installation. The low-profile, trim-style head sits flush with the surface, delivering a clean finish. A Type-17 point allows for quick starts, while coarse threads on the lower two-thirds of the shank provide powerful pull-through—drawing deck boards tightly to the joists for a secure hold.
This trim-head, square-drive screw includes models in both Type 305 and Type 316 stainless steel for corrosion resistance and is available in stainless steel with a 6-lobe drive (and painted heads) for hand-drive applications, as well as in collated square-drive versions (with and without painted heads) for our Quik Drive® auto-feed screw driving systems.
- Trim-style head for flush seating and cleaner appearance on decking surfaces
- Square-drive design for easy installation and secure driving
- Type-17 point for fast starts
- Coarse threads on approximately two-thirds of the shank for pulling the decking and other material tightly to the framing
- Predrilling recommended near board ends to prevent splitting
- Driver bit included in each package
- Replacement bit part number: BIT1S-2-R2
- 350-count packs contain enough screws to fasten 100 sq. ft. of decking (6" nominal-width boards installed on 16" o.c. joists)
- Choose Type 316 stainless steel for seaside applications and superior corrosion resistance
- Fasten wood decking and some decking materials. Because of their small footprint heads, trim-head screws are good for general-purpose, non-structural wood-to-wood or wood-to-engineered wood applications.
