ECCQ46SS-SDS2.5 End Column Cap

Simpson Strong-Tie

Write a Review
Retail Price: $933.81
Sale Price: $691.71
Usually ships in 2-3 business days
316 Stainless Steel
Adding to cart… The item has been added

Product Overview

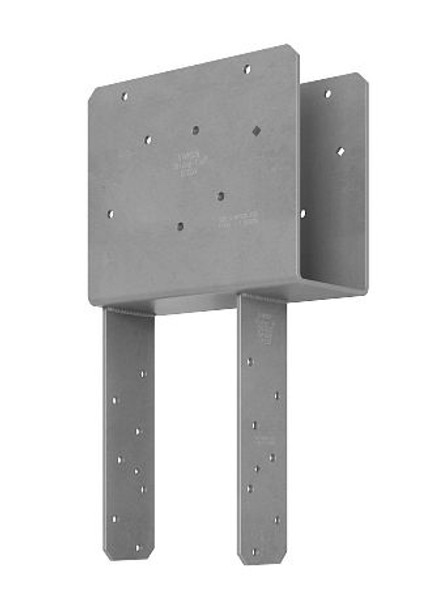

ECCQ46SS-SDS2.5 End Column Cap

Column caps provide a high-capacity connection for column-beam combinations. This design uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts.


CCQ3, ECCQ3, CCQ4, CCQ4.62, ECCQ4, ECCQ4.62, CCQ6, ECCQ6—7 gauge; all others—3 gauge


SST300 Stainless Steel


Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)

CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.

For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)


For end conditions, specify ECCQ.

Straps may be rotated 90° where W1 ≥ W2 and for CCQ5-6.
