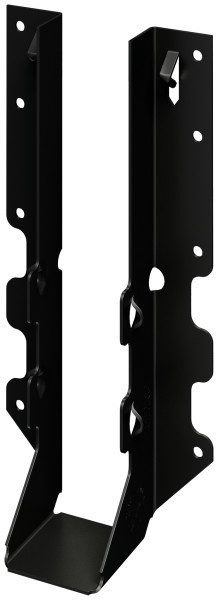

LUS210PC Outdoor Accents Light-Capacity Joist Hanger (Carton of 12pcs)
ORNAMENTAL 2x10 LIGHT U-SHAPED PC/ZMAX
The Outdoor Accents LUSPC joist hanger connects a joist to a beam and is easy to install for a wide range of applications. This widely used hanger features double-shear fastening that distributes the load through two points on each connector screw for greater strength. The LUSPC installs with premium, color-matched Outdoor Accents connector screws (sold separately). This joist hanger is made from ZMAX galvanized steel for superior corrosion resistance with a stylish black powder coat for added beauty.
Key Features
- Quickly attaches joists to beam or ledger
- Double‑shear fastening for higher strength with fewer fasteners
- Model range matches the most typical joist dimensions for decks
- Works for a wide range of applications
- Tested, load rated and code compliant
Material
- 18 ga.
Finish
- ZMAX® galvanized steel with a black powder-coat finish
Installation
- Use all specified fasteners; see General Notes.
- Install with Simpson Strong-Tie Outdoor Accents #9 x 1 1/2" connector screws into the header and Outdoor Accents #9 x 2 1/2" connector screws into the joist.
- Joist screws must be driven at an angle through the joist or truss into the header to achieve the table loads.
