Product Overview

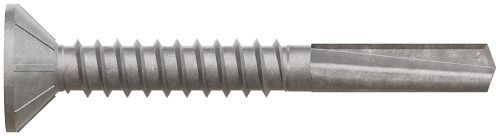

PPHDQ134B1016-4K Sheathing-to-CFS Screw (Carton of 4000pcs)
The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point. The Strong-Drive PPHD Sheathing-to-CFS screw comes in bulk for hand drive applications and collated for use in Quik Drive auto-feed screw driving systems.
Key Features
6-lobe drive (driver bit in each box; use replacement bit model BIT25T-2-R2)
Fine threads
Pilot point
Quik Guard and yellow zinc coating
PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISI S240, AISI S400 and AISI S213
Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
Applications
Fastening wood structural panels and other building materials to cold-formed steel framing.
Installation
#8 — maximum thickness two layers of 18 ga. (0.100" total)
#10 and #12 — maximum thickness two layers of 12 ga. (0.218" total)
Recommended maximum wood panel sheathing thickness are as follows: #8 x 1 15/16" — 7/8"; #10 x 1 3/4" — 19/32"; #10 x 3" — 7/8"; #12 — 19/32"
The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point. The Strong-Drive PPHD Sheathing-to-CFS screw comes in bulk for hand drive applications and collated for use in Quik Drive auto-feed screw driving systems.
Key Features
6-lobe drive (driver bit in each box; use replacement bit model BIT25T-2-R2)
Fine threads
Pilot point
Quik Guard and yellow zinc coating
PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISI S240, AISI S400 and AISI S213
Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
Applications
Fastening wood structural panels and other building materials to cold-formed steel framing.
Installation
#8 — maximum thickness two layers of 18 ga. (0.100" total)
#10 and #12 — maximum thickness two layers of 12 ga. (0.218" total)
Recommended maximum wood panel sheathing thickness are as follows: #8 x 1 15/16" — 7/8"; #10 x 1 3/4" — 19/32"; #10 x 3" — 7/8"; #12 — 19/32"
