Product Overview

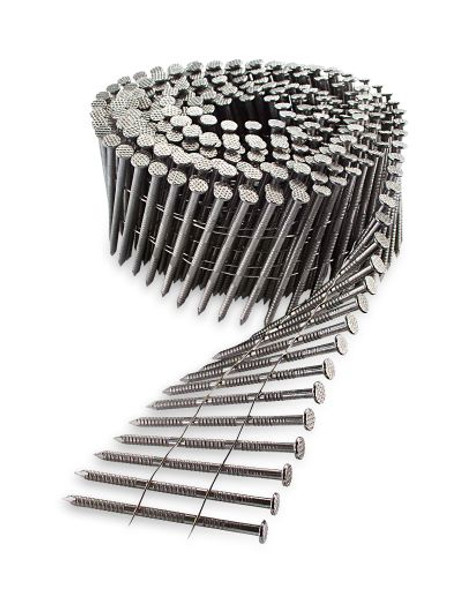

S12A175PNB 15° Wire Coil, Full Round Head, Ring-Shank Decking/Framing Nail
Collated Nail
15° Wire Coil, Full Round Head, Ring-Shank Decking/Framing Nails
Key Features:
Checker pattern on head blends with the wood grain, reduces glare from sunlight and accepts surface finishes
Annular ring-shank increases withdrawal resistance to provide a secure attachment
Choose Type 316 stainless steel for seaside applications and superior corrosion resistance
Ordering Information:
These products are subject to quantities on hand or may require special ordering and are subject to minimum order quantities and longer lead times. Call Simpson Strong-Tie for details (800) 999-5099.
Compatible Tools:
If you dont see the particular model of your pneumatic tool in the table shown, please refer to the complete Tool Compatibility Matrix, or call Simpson Strong-Tie at (800) 999-5099 and a sales professional will assist with fastener selection.
Bostitch®/ N80CB (up to 3 1⁄4"), N75C (up to 3"), N89C
DeWalt®/ D51855
Duo-Fast®/ P350C/CNW90, P275C (up to 2 3⁄4")
Grip-Rite®/ GRTCN90-3 1⁄2, GRTCS250 (up to 0.099", 2 1⁄2")
Hitachi®/ NV65AH (up to 0.099", 2 1⁄2"), NV75AG (up to 3"), NV83A2
Makita®/ AN901
Max®/ CN565S (up to 2 1⁄2", 0.099"), CN565D (up to 2 1⁄2", 0.113"), CN665 (up to 2 1⁄2"), CN890S, CN565 (up to 2 1⁄2",0.099"), CN100, CN70 (up to 2 1⁄2"), CN80 (up to 3 1⁄4")
Senco®/ SCN60XP (up to 2 3⁄4", 0.113"), SCN49 (up to 2 1⁄2", 0.113"), SCN65XP (up to 0.113"), PalletPro100, PalletPro130 (over 3"), PalletPro70 (up to 2 3⁄4", 0.113"), PalletPro83 (up to 3 1⁄4")
