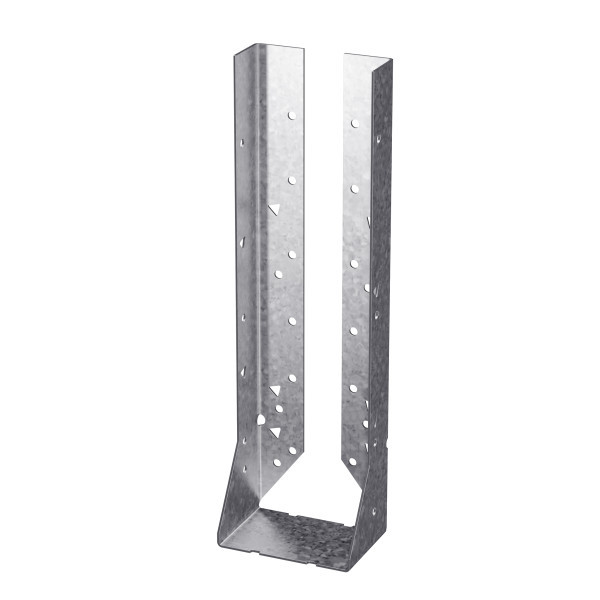

HUC3.25/16 Concealed Flange Hanger

Simpson Strong-Tie

Write a Review
Retail Price: $62.14
Sale Price: $46.03
SKU:
huc325-16-g90
UPC:
707392958901
Availability:
Usually ships in 2-3 business days
Finish:
G90 Galvanized
Adding to cart… The item has been added

Product Overview

HUC3.25/16 Concealed Flange Hanger

This concealed-flange hanger can be welded to structural steel members to support CFS joists.

Key Features:

Extra optional triangle holes for additional load

HUC-series hangers are tested, load rated and code compliant

Material:

14 ga. (68 mil)

Finish:

Galvanized (G90)

Installation:

HUC series hangers may be welded to supporting structural steel members

Use 1" weld segments equally spaced top and bottom, with half the segments on each side of hanger

Welds may be either lap joint (on outside edge of flanges) or flare-bevel groove (on flange bend line)
