Product Overview

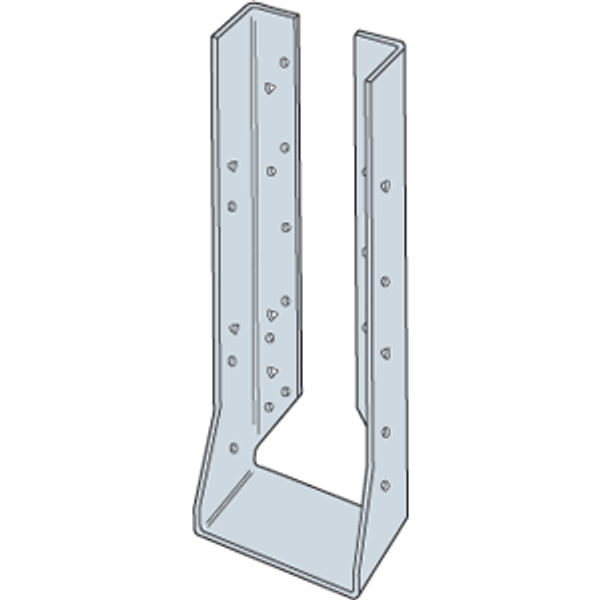

HUC5.31/11 Concealed Flange Hanger
This concealed-flange hanger can be welded to structural steel members to support CFS joists.
Key Features:
Extra optional triangle holes for additional load
HUC-series hangers are tested, load rated and code compliant
Material:
14 ga. (68 mil)
Finish:
Galvanized (G90)
Installation:
HUC series hangers may be welded to supporting structural steel members
Use 1" weld segments equally spaced top and bottom, with half the segments on each side of hanger
Welds may be either lap joint (on outside edge of flanges) or flare-bevel groove (on flange bend line)
