Product Overview
WSWH-AB1X24HS Wood Strong Wall HS Anchor Bolt
The WSWH-AB high-strength wood shearwall anchor bolt is replacing the WSW anchor bolt. WSWH accessories are compatible only with WSWH panels; use WSW accessories with WSW panels.

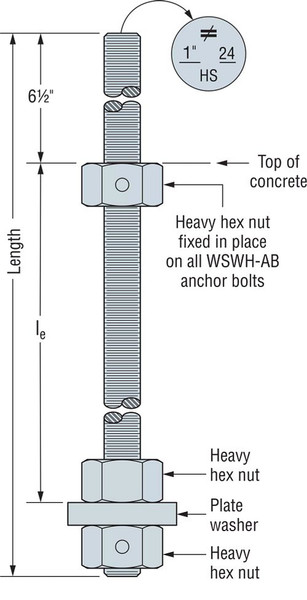

The WSWH-AB is a heavy-duty preassembled anchor bolt used to attach Strong-Wall® high-strength wood shearwalls (WSWH) to concrete foundations. With a 1" diameter and a variety of length options, these anchor bolts offer flexibility for meeting specific project demands. A stamped head makes inspection and identification easy with a No-Equal symbol, bolt length, bolt diameter and optional “HS” for high strength, if specified.
Key Features
Fixed-in-place heavy hex compression nut to improve performance
Head stamp for easy identification and inspection
Supplied with extra nut for attachment to anchor template
Product Includes
An additional nut for template installation is provided with each WSWH-AB
Material
ASTM F1554 Grade 36; high-strength (HS) ASTM A193 Grade B7
Installation
Install WSWH-AB before the concrete is poured using the appropriate WSWH-RT template and supplied nut; locate per designer
Install shear reinforcement per the registered design professional before concrete is poured
Foundation design by designer
