WSWH-PK Strong Wall Portal Frame Connection Kit
The WSWH-PK high-strength wood shearwall portal frame connection kit is replacing the WSW portal frame connection kit. WSWH accessories are compatible only with WSWH panels; use WSW accessories with WSW panels.
The WSWH-PK Strong-Wall® wood shearwall portal frame connection kit works with Strong-Wall high-strength wood shearwalls (WSWH) to achieve increased load values for portal frame systems. While this connection kit comes standard with panels that are 100" or less in height, the kit is also available separately for projects that require walls that exceed 100" to be used as part of a portal frame system. The portal frame connection kit is required to achieve increased load values listed for the portal frame system.
Key Features
May be used in single- or double-portal applications and installed with a minimum 3" x 11 1/4" single- or multi-ply header depending upon loading and span requirements
Simplifies installation to provide superior performance
Straps designed specifically for Strong-Wall® high-strength wood shearwalls in portal applications
Product Includes

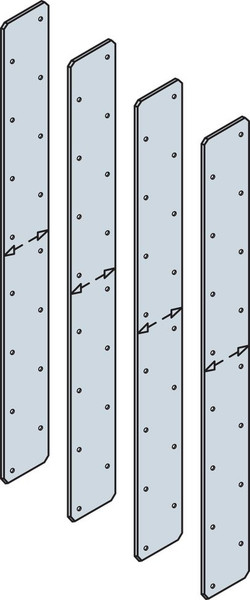

4 WSWH-PS straps
Material
10 gauge
Finish
G90 galvanized
Installation
Maintain 1/2" distance from edge of panel and end of header
Install with twenty 0.148" x 2 1/2" (min.) nails — ten in header and ten in panel
