Product Overview
WSWH-RTELPF12 Strong Wall Anchor Bolt Template (Extended Leg/Panel Form)
The WSWH-RT high-strength wood shearwall anchor bolt templates are replacing the WSW anchor bolt templates. WSWH accessories are compatible only with WSWH panels; use WSW accessories with WSW panels.
The WSWH-RT are patented anchor bolt templates designed to ensure accurate anchor bolt placement for Strong-Wall® high-strength wood shearwalls (WSWH). These anchor bolt templates simplify installation and greatly reduce the likelihood of voids in the concrete. The templates are reusable and designed to work with the common foundation types used for WSWH panels.
Key Features
Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
Standard templates are reversible and can be used for interior or exterior applications
Variety of configuration options to accommodate common concrete
foundation types
Applications
RT — standard model used for exterior and interior (reversed) installations at the top of the form
RTPF — panel form model used for installations in panel forms, typically below the top of the form
RTBL — brick ledge model used for brick ledge foundations
RTEL — extended leg model used for installations flush with the inside face of a 2x6 framed exterior wall

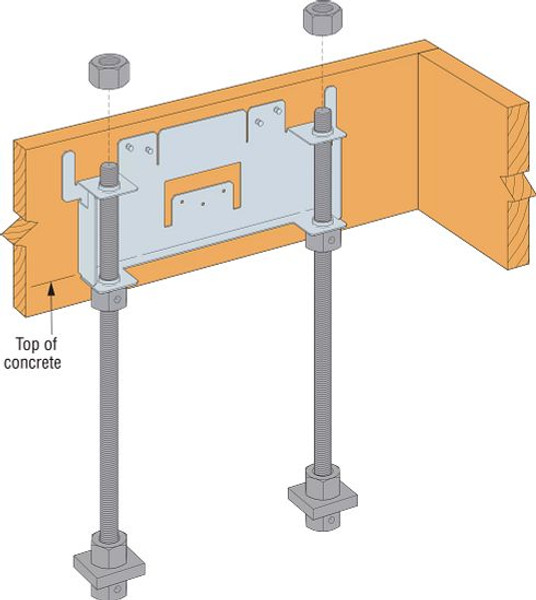

RTELPF — extended leg model used for panel form installations where WSWH is flush with the inside face of a 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
Material
14 gauge
Finish
G90 galvanized
Installation
Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
