Product Overview
SWH-RTCMU12 Strong-Wall High-Strength Shearwall Anchor Bolt Template (CMU)
The Strong-Wall high-strength shearwall anchor bolt template (SWH-RT) features a patented design that ensures the accurate placement of anchor bolts. This universal template works with both our Strong-Wall high-strength wood shearwall (WSWH) and high-strength steel shearwall (SSWH). The SWH-RT simplifies installation, reducing the likelihood of voids in the concrete. The template is reusable and designed to work with all common concrete foundation types used with SSWH and WSWH panels.
- Universal template that can be used for both the Strong-Wall high-strength wood shearwall (WSWH) and high-strength steel shearwall (SSWH)
- Accurately locates anchor bolts for Strong-Wall high-strength shearwalls
- Accommodates structures built on all common concrete foundation types
- Standard template is reversible and can be used for interior or exterior applications

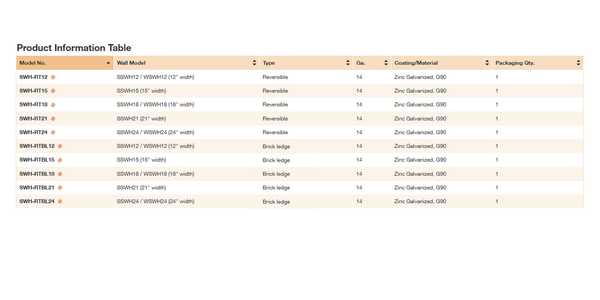

RT — standard model used for exterior and interior (reversed) installations at the top of the form
RTPF — panel form model used for installations in panel forms, typically below the top of the form
RTBL — brick-ledge model used for brick-ledge foundations
RTEL — extended-leg model used for installations where Strong-Wall shearwall is flush with the inside face of a nominal 2x6 sill plate
RTELPF — extended-leg model used for panel form installations where Strong-Wall shearwall is flush with the inside face of a nominal 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
CMU — model used for CMU foundations
- 14 ga.
- Zinc Galvanized, G90
