Product Overview

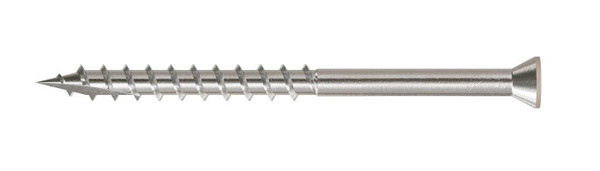

T07225FT70GR01 Trim-Head Screw, 6-Lobe Drive (Gray01)
Hand-Drive Screws
Trim-Head Screw, 6-Lobe Drive
Trim-Head decking screws are availiable in stainless steel for superior corrosion resistance in marine or high-exposure environments where PVC or composite decks are installed. Trim-Head screws provide a clean finish because of their special head design and are available with painted heads in 13 colors, matched to blend with most major PVC and composite decking manufacturers.
Key Features:
• Trim-style head is less noticeable on the decking surface
• Type-17 point for fast starts
• Coarse threads on approximately 2/3 of the shank draw the decking and other material tightly to the framing
• 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• 350-count packs contain enough screws to fasten 100 sq. ft. of decking (6" nominal-width boards installed on 16" o.c. joists)
• Choose Type 316 for seaside applications and superior corrosion resistance
• Predrilling recommended near board ends to prevent splitting
• T-15 6-lobe drive (replacement bit model BIT15T-2)
• Heads painted for a concealed appearance
** See Composite-Decking Color Cross-Reference chart
Applications:
• Fasten PVC and some composite decking materials
• Also available in unpainted square-drive versions for hand-drive applications, as well as collated square-drive versions — with and without painted heads — for use with Quik Drive® auto-feed screwdriving systems.
